ILAMB Benchmark Results

Mean State
Relationship
Results Table

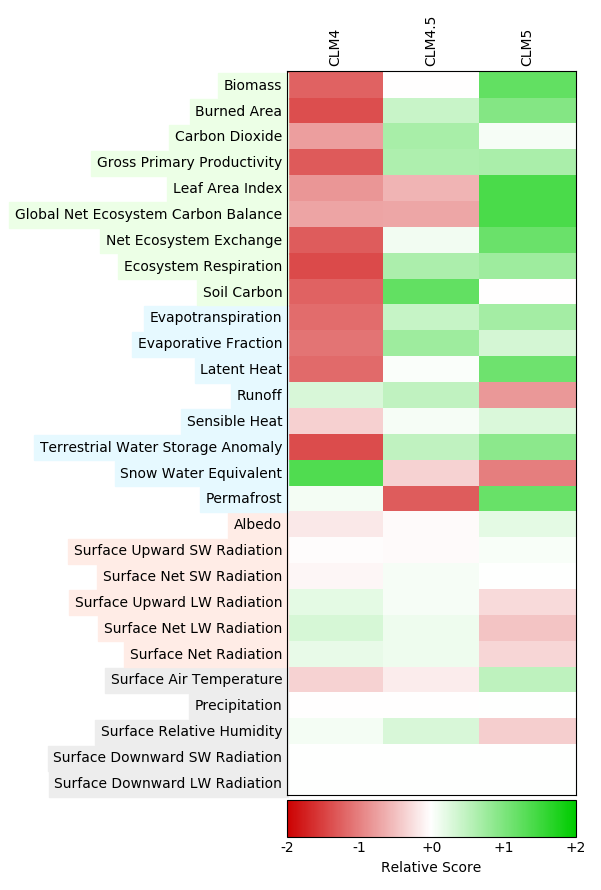

Mean State Scores

	CLM4	CLM4.5	CLM5
Biomass	0.64	0.68	0.72
GEOCARBON (27.8%)	0.76	0.78	0.75
Tropical (27.8%)	0.58	0.62	0.75
GlobalCarbon (22.2%)	0.58	0.62	0.68
NBCD2000 (11.1%)	0.66	0.72	0.69
USForest (11.1%)	0.59	0.65	0.67
Burned Area	0.39	0.53	0.56
GFED4S (100.0%)	0.39	0.53	0.56
Carbon Dioxide	0.72	0.75	0.74
NOAA (100.0%)	0.72	0.75	0.74
Gross Primary Productivity	0.58	0.61	0.61
Fluxnet (37.5%)	0.62	0.66	0.67
GBAF (62.5%)	0.55	0.59	0.58
Leaf Area Index	0.42	0.43	0.51
AVHRR (50.0%)	0.44	0.45	0.53
MODIS (50.0%)	0.40	0.41	0.48
Global Net Ecosystem Carbon Balance	0.63	0.63	0.87
GCP (50.0%)	0.55	0.61	0.77
Hoffman (50.0%)	0.70	0.65	0.97
Net Ecosystem Exchange	0.49	0.53	0.55
Fluxnet (69.2%)	0.58	0.62	0.63
GBAF (30.8%)	0.27	0.31	0.37
Ecosystem Respiration	0.55	0.60	0.61
Fluxnet (60.0%)	0.57	0.63	0.63
GBAF (40.0%)	0.51	0.57	0.58
Soil Carbon	0.41	0.68	0.55
HWSD (55.6%)	0.51	0.68	0.51
NCSCDV22 (44.4%)	0.29	0.69	0.59
Ecosystem and Carbon Cycle Summary	0.55	0.62	0.64
Evapotranspiration	0.62	0.65	0.66
GLEAM (50.0%)	0.62	0.67	0.67
MODIS (50.0%)	0.62	0.64	0.64
Evaporative Fraction	0.71	0.75	0.74
GBAF (100.0%)	0.71	0.75	0.74
Latent Heat	0.62	0.64	0.66
Fluxnet (25.0%)	0.66	0.66	0.69
GBAF (75.0%)	0.60	0.63	0.66
Runoff	0.81	0.81	0.79
Dai (100.0%)	0.81	0.81	0.79
Sensible Heat	0.68	0.69	0.69
Fluxnet (37.5%)	0.71	0.71	0.70
GBAF (62.5%)	0.66	0.68	0.68
Terrestrial Water Storage Anomaly	0.65	0.70	0.72
GRACE (100.0%)	0.65	0.70	0.72
Snow Water Equivalent	0.61	0.56	0.54
CanSISE (100.0%)	0.61	0.56	0.54
Permafrost	0.81	0.76	0.84
NSIDC (100.0%)	0.81	0.76	0.84
Hydrology Cycle Summary	0.67	0.69	0.69
Albedo	0.57	0.57	0.58
CERES (50.0%)	0.59	0.59	0.60
GEWEX.SRB (50.0%)	0.55	0.55	0.56
Surface Upward SW Radiation	0.64	0.64	0.64
CERES (35.7%)	0.72	0.72	0.72
GEWEX.SRB (35.7%)	0.66	0.65	0.66
WRMC.BSRN (28.6%)	0.52	0.52	0.52
Surface Net SW Radiation	0.73	0.73	0.73
CERES (35.7%)	0.81	0.82	0.82
GEWEX.SRB (35.7%)	0.78	0.78	0.78
WRMC.BSRN (28.6%)	0.57	0.57	0.57
Surface Upward LW Radiation	0.76	0.75	0.75
CERES (35.7%)	0.79	0.79	0.78
GEWEX.SRB (35.7%)	0.80	0.80	0.79
WRMC.BSRN (28.6%)	0.65	0.64	0.64
Surface Net LW Radiation	0.66	0.66	0.65
CERES (35.7%)	0.69	0.69	0.68
GEWEX.SRB (35.7%)	0.71	0.70	0.69
WRMC.BSRN (28.6%)	0.57	0.56	0.56
Surface Net Radiation	0.71	0.71	0.70
CERES (27.8%)	0.75	0.75	0.74
Fluxnet (22.2%)	0.79	0.79	0.78
GEWEX.SRB (27.8%)	0.73	0.73	0.73
WRMC.BSRN (22.2%)	0.57	0.57	0.56
Radiation and Energy Cycle Summary	0.68	0.68	0.68
Surface Air Temperature	0.90	0.90	0.91
CRU (73.5%)	0.91	0.92	0.93
Fluxnet (26.5%)	0.86	0.86	0.86
Precipitation	0.76	0.76	0.76
CMAP (29.0%)	0.74	0.74	0.74
Fluxnet (13.0%)	0.61	0.61	0.61
GPCC (29.0%)	0.86	0.86	0.86
GPCP2 (29.0%)	0.76	0.76	0.76
Surface Relative Humidity	0.57	0.57	0.56
ERA (100.0%)	0.57	0.57	0.56
Surface Downward SW Radiation	0.82	0.82	0.82
CERES (27.8%)	0.83	0.83	0.83
Fluxnet (22.2%)	0.86	0.86	0.86
GEWEX.SRB (27.8%)	0.83	0.83	0.83
WRMC.BSRN (22.2%)	0.76	0.76	0.76
Surface Downward LW Radiation	0.82	0.82	0.82
CERES (35.7%)	0.81	0.81	0.81
GEWEX.SRB (35.7%)	0.86	0.86	0.86
WRMC.BSRN (28.6%)	0.78	0.78	0.78
Forcings Summary	0.75	0.75	0.75
Overall Summary	0.66	0.68	0.69

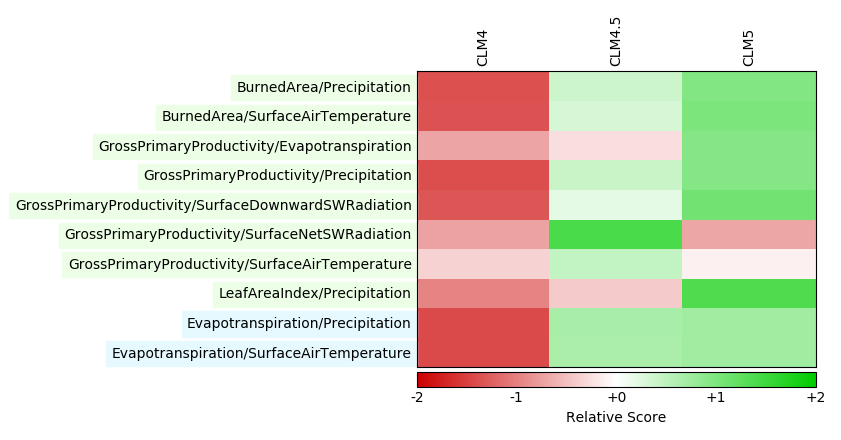

Relationship Scores

	CLM4	CLM4.5	CLM5
BurnedArea/GFED4S	0.44	0.58	0.63
Precipitation/GPCP2 (50.0%)	0.45	0.58	0.63
SurfaceAirTemperature/CRU (50.0%)	0.44	0.58	0.64
GrossPrimaryProductivity/GBAF	0.78	0.84	0.85
Evapotranspiration/GLEAM (20.0%)	0.85	0.86	0.88
Precipitation/GPCP2 (20.0%)	0.73	0.88	0.92
SurfaceDownwardSWRadiation/CERES (20.0%)	0.69	0.76	0.80
SurfaceNetSWRadiation/CERES (20.0%)	0.81	0.88	0.81
SurfaceAirTemperature/CRU (20.0%)	0.82	0.84	0.82
LeafAreaIndex/AVHRR	0.54	0.61	0.84
Precipitation/GPCP2 (100.0%)	0.54	0.61	0.84
LeafAreaIndex/MODIS	0.55	0.63	0.86
Precipitation/GPCP2 (100.0%)	0.55	0.63	0.86
Ecosystem and Carbon Cycle Summary	~	~	~
Evapotranspiration/GLEAM	0.75	0.86	0.90
Precipitation/GPCP2 (50.0%)	0.73	0.86	0.91
SurfaceAirTemperature/CRU (50.0%)	0.77	0.87	0.90
Evapotranspiration/MODIS	0.82	0.86	0.83
Precipitation/GPCP2 (50.0%)	0.88	0.93	0.88
SurfaceAirTemperature/CRU (50.0%)	0.76	0.80	0.77
Hydrology Cycle Summary	~	~	~
Radiation and Energy Cycle Summary (0.0%)	~	~	~
Forcings Summary (0.0%)	~	~	~
Overall Summary	~	~	~
