Global - Land
BCC-CSM2-MR
Download Data
Period Mean (original grids) [Pg]
Model Period Mean (intersection) [Pg]
Benchmark Period Mean (intersection) [Pg]
Model Period Mean (complement) [Pg]
Benchmark Period Mean (complement) [Pg]
Bias [kg m-2]
Bias Score [1]
Spatial Distribution Score [1]
Overall Score [1]
Benchmark [-] 26.2
BCC-CSM2-MR [-] 362. 19.2 26.0 343. 0.135 -0.725 0.629 0.765 0.697
BGCv2LND.GSW [-] 666. 29.1 26.2 637. 0.0110 0.354 0.683 0.906 0.795
BGCv2LNDATM [-] 704. 24.8 26.2 679. 0.0110 -0.172 0.700 0.831 0.766
CanESM5 [-] 505. 31.6 26.2 465. 1.14 0.606 0.878 0.742
MeanCMIP6 [-] 447. 27.8 26.2 419. 0.543 0.666 0.835 0.750
MIROC-ES2L [-] 499. 32.6 26.2 457. 0.000288 1.25 0.565 0.848 0.707

Temporally integrated period mean click to collapse contents

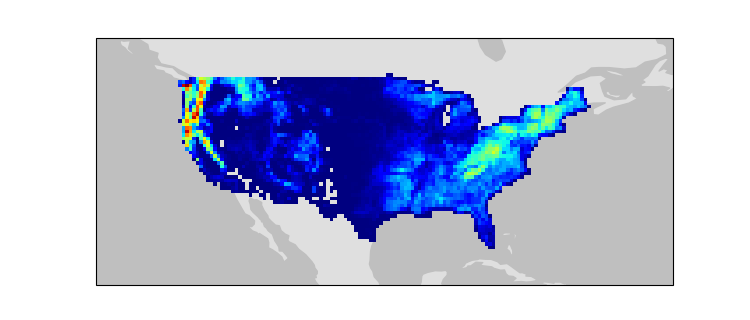

BENCHMARK MEAN
Data not available
Data not available

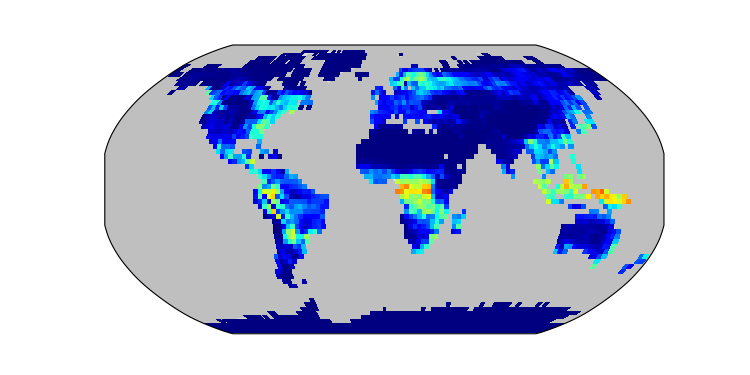

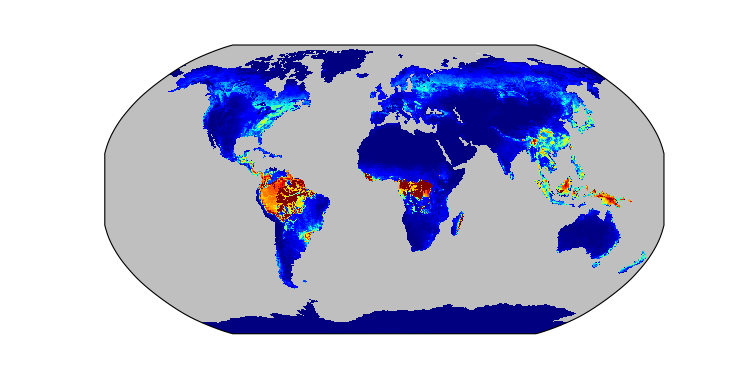

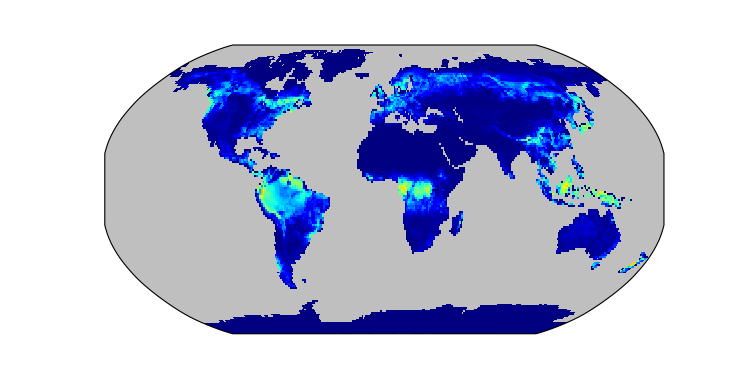

MODEL MEAN
Data not available
Data not available

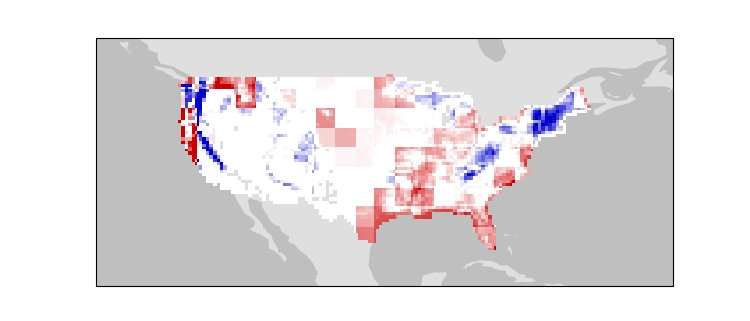

BIAS
Data not available
Data not available

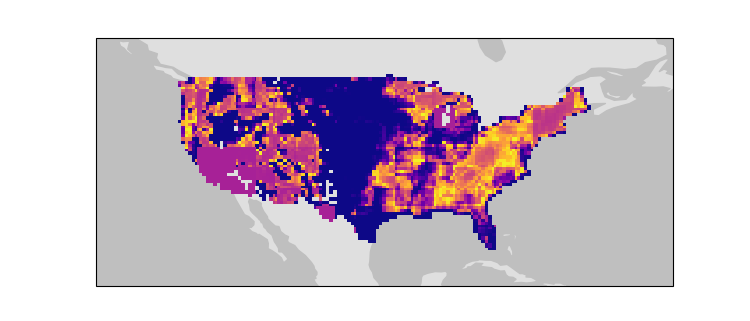

BIAS SCORE
Data not available
Data not available

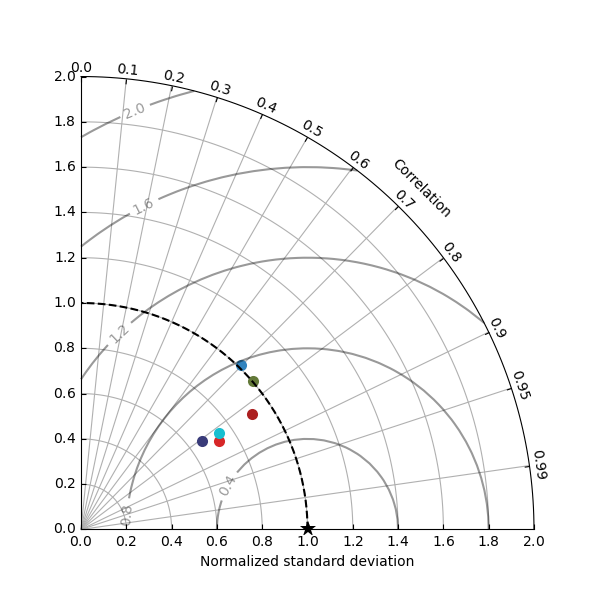

SPATIAL TAYLOR DIAGRAM
Data not available

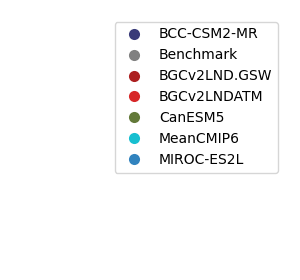

MODEL COLORS
Data not available

Spatially integrated regional mean click to collapse contents

MODEL COLORS
Data not available

Biomass / NBCD2000 / 1996-2006 / global / MNAME

Benchmark
Data not available
Data not available
BCC-CSM2-MR
Data not available
Data not available
BGCv2LND.GSW
Data not available
Data not available
BGCv2LNDATM
Data not available
Data not available
CanESM5
Data not available
Data not available
MeanCMIP6
Data not available
Data not available
MIROC-ES2L
Data not available
Data not available

Data Information

  Approach:
To convert the original data at 250m to the final one at 0.5x0.5 degree resolution, Please see conversion steps listed in http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/readme_biomass. 3 codes below will be used in these steps. Code 1: http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/read-NBCD2000.pro Code 2: http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/convert-NBCD2000.ncl Code 3: http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/write-NBCD2000.ncl First, I used Code 1 to read data at 250m from the original geotiff file
then I used Code 2 to convert unit from the orignal unit of ton C per hectare to the final one of Kg C per m2, meanwhile I summed all available data points at 250m in each 0.5x0.5 grid cell to obtain the data at 0.5x0.5 degree resolution
finally I used Code 3 to create the final file in netCDF format.

  Temporal resolution:
yearly

  General information:
This product was derived from National Biomass and Carbon Dataset for the year 2000 originally in a raster format at 250m.

  Spatial resolution:
0.5x0.5 degree

  Derived data code:
http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/read-NBCD2000.pro http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/convert-NBCD2000.ncl http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/write-NBCD2000.ncl
