Equatorial Africa Equatorial Asia Global - Land South America - Amazon Temperate Latitudes

	Download Data	Period Mean (original grids) [Pg]	Model Period Mean (intersection) [Pg]	Benchmark Period Mean (intersection) [Pg]	Model Period Mean (complement) [Pg]	Benchmark Period Mean (complement) [Pg]		Bias [kg m-2]		Bias Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	56.3
ACCESS-ESM1-5	[-]	86.2	83.9	56.2	0.387	0.0311		2.92		0.611	0.885	0.748
BCC-CSM2-MR	[-]	47.5	47.2	55.8	0.259	0.0374		-0.817		0.731	0.943	0.837
BGCLND	[-]	97.9	97.9	56.3	0.0777	0.00545		4.12		0.486	0.423	0.455
BGCLNDATM_progCO2	[-]	118.	118.	56.3	0.0662	0.00545		6.10		0.422	0.331	0.376
CanESM5	[-]	92.4	84.4	56.3	1.88			3.22		0.645	0.917	0.781
CNRM-ESM2-1	[-]	36.5	36.6	56.3	0.451	0.0214		-1.78		0.629	0.831	0.730
EC-Earth3-CC	[-]	58.8	57.6	56.3	0.0474			0.156		0.657	0.914	0.786
MeanCMIP6	[-]	65.2	65.4	56.3	0.865			1.22		0.693	0.927	0.810
MIROC-ES2L	[-]	77.9	70.2	56.3	2.80	0.0106		1.82		0.619	0.890	0.755
MPI-ESM1-2-LR	[-]	43.3	44.9	53.7	0.105	2.58		-0.904		0.644	0.913	0.778
MRI-ESM2-0	[-]	75.2	74.7	55.8	0.506	0.0464		1.98		0.619	0.800	0.709
NorESM2-LM	[-]	48.7	48.9	56.3	1.03			-0.418		0.616	0.850	0.733
UKESM1-0-LL	[-]	62.1	61.8	56.2	0.508	0.0510		0.800		0.645	0.918	0.781

	Download Data	Period Mean (original grids) [Pg]	Model Period Mean (intersection) [Pg]	Benchmark Period Mean (intersection) [Pg]	Model Period Mean (complement) [Pg]	Benchmark Period Mean (complement) [Pg]		Bias [kg m-2]		Bias Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	37.5
ACCESS-ESM1-5	[-]	32.7	31.3	36.5	1.38	1.04		0.560		0.667	0.909	0.788
BCC-CSM2-MR	[-]	28.3	26.5	36.9	1.83	0.805		-0.770		0.690	0.908	0.799
BGCLND	[-]	62.4	61.5	37.3	0.866	0.163		5.88		0.673	0.907	0.790
BGCLNDATM_progCO2	[-]	67.5	66.8	37.3	0.777	0.163		7.16		0.572	0.854	0.713
CanESM5	[-]	39.4	30.4	37.6	8.13			5.14		0.729	0.821	0.775
CNRM-ESM2-1	[-]	34.6	31.6	37.3	3.21	0.220		4.47		0.695	0.851	0.773
EC-Earth3-CC	[-]	30.4	30.0	37.4	0.118			-1.71		0.600	0.836	0.718
MeanCMIP6	[-]	27.8	24.6	37.5	3.46			1.23		0.703	0.612	0.657
MIROC-ES2L	[-]	27.6	18.2	37.2	7.99	0.387		-0.142		0.594	0.449	0.522
MPI-ESM1-2-LR	[-]	22.2	20.4	22.7	2.15	14.8		-1.24		0.722	0.911	0.817
MRI-ESM2-0	[-]	47.8	44.6	36.7	3.25	1.02		6.76		0.645	0.926	0.786
NorESM2-LM	[-]	46.9	39.8	37.5	6.63			7.50		0.641	0.909	0.775
UKESM1-0-LL	[-]	38.5	33.9	36.7	4.64	0.799		4.97		0.749	0.514	0.632

	Download Data	Period Mean (original grids) [Pg]	Model Period Mean (intersection) [Pg]	Benchmark Period Mean (intersection) [Pg]	Model Period Mean (complement) [Pg]	Benchmark Period Mean (complement) [Pg]		Bias [kg m-2]		Bias Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	349.
ACCESS-ESM1-5	[-]	662.	419.	347.	242.	1.67		1.33		0.616	0.840	0.728
BCC-CSM2-MR	[-]	385.	245.	347.	139.	1.74		-1.22		0.654	0.901	0.778
BGCLND	[-]	666.	502.	349.	164.	0.298		2.17		0.576	0.578	0.577
BGCLNDATM_progCO2	[-]	704.	572.	349.	131.	0.298		3.17		0.513	0.466	0.489
CanESM5	[-]	509.	332.	349.	168.			0.690		0.605	0.868	0.737
CNRM-ESM2-1	[-]	490.	300.	349.	188.	0.294		0.0544		0.654	0.876	0.765
EC-Earth3-CC	[-]	383.	287.	349.	96.6			-0.889		0.591	0.871	0.731
MeanCMIP6	[-]	446.	294.	349.	153.			-0.198		0.654	0.868	0.761
MIROC-ES2L	[-]	519.	327.	348.	182.	0.459		0.355		0.617	0.878	0.747
MPI-ESM1-2-LR	[-]	369.	284.	319.	83.6	30.2		-0.546		0.601	0.867	0.734
MRI-ESM2-0	[-]	485.	338.	347.	146.	1.52		0.383		0.558	0.745	0.651
NorESM2-LM	[-]	462.	314.	349.	143.			0.369		0.619	0.834	0.727
UKESM1-0-LL	[-]	545.	414.	347.	128.	1.80		1.79		0.639	0.862	0.751

	Download Data	Period Mean (original grids) [Pg]	Model Period Mean (intersection) [Pg]	Benchmark Period Mean (intersection) [Pg]	Model Period Mean (complement) [Pg]	Benchmark Period Mean (complement) [Pg]		Bias [kg m-2]		Bias Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	100.
ACCESS-ESM1-5	[-]	124.	124.	100.	0.185	0.0444		3.05		0.711	0.908	0.809
BCC-CSM2-MR	[-]	76.8	76.6	100.	0.174	0.132		-2.63		0.731	0.872	0.801
BGCLND	[-]	190.	190.	100.	0.232	0.00476		10.6		0.532	0.482	0.507
BGCLNDATM_progCO2	[-]	227.	226.	100.	0.219	0.00476		14.8		0.405	0.348	0.377
CanESM5	[-]	60.1	55.9	100.	0.358			-4.83		0.615	0.867	0.741
CNRM-ESM2-1	[-]	92.1	92.0	100.	0.368	0.0184		-0.645		0.779	0.967	0.873
EC-Earth3-CC	[-]	96.5	96.2	100.	0.0356			-0.539		0.618	0.711	0.665
MeanCMIP6	[-]	71.5	71.1	100.	0.401			-3.09		0.702	0.578	0.640
MIROC-ES2L	[-]	91.6	87.3	100.	0.962	0.0329		-1.07		0.748	0.802	0.775
MPI-ESM1-2-LR	[-]	93.7	90.9	98.2	0.0891	1.93		-0.910		0.700	0.900	0.800
MRI-ESM2-0	[-]	113.	113.	100.	0.220	0.175		1.79		0.661	0.802	0.732
NorESM2-LM	[-]	130.	128.	100.	0.902			3.99		0.694	0.925	0.810
UKESM1-0-LL	[-]	114.	114.	100.	0.457	0.153		2.16		0.787	0.888	0.838

	Download Data	Period Mean (original grids) [Pg]	Model Period Mean (intersection) [Pg]	Benchmark Period Mean (intersection) [Pg]	Model Period Mean (complement) [Pg]	Benchmark Period Mean (complement) [Pg]		Bias [kg m-2]		Bias Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	10.7
ACCESS-ESM1-5	[-]	228.	5.63	10.7	225.	0.0902		-1.18		0.489	0.537	0.513
BCC-CSM2-MR	[-]	132.	5.01	10.7	126.	0.0889		-1.47		0.514	0.733	0.623
BGCLND	[-]	151.	6.42	10.7	144.	0.0141		-1.28		0.502	0.617	0.560
BGCLNDATM_progCO2	[-]	122.	6.37	10.7	115.	0.0141		-1.29		0.546	0.716	0.631
CanESM5	[-]	142.	3.72	10.7	143.			-1.48		0.519	0.711	0.615
CNRM-ESM2-1	[-]	171.	5.58	10.7	165.	0.000147		-0.716		0.451	0.409	0.430
EC-Earth3-CC	[-]	92.1	4.46	10.7	88.0			-1.97		0.526	0.834	0.680
MeanCMIP6	[-]	137.	4.74	10.7	132.			-1.39		0.557	0.826	0.692
MIROC-ES2L	[-]	157.	6.43	10.7	154.	0.00165		-0.985		0.553	0.804	0.679
MPI-ESM1-2-LR	[-]	76.5	3.08	10.1	73.9	0.628		-2.19		0.462	0.725	0.594
MRI-ESM2-0	[-]	137.	3.11	10.7	132.	0.0461		-1.83		0.450	0.609	0.530
NorESM2-LM	[-]	128.	4.87	10.7	122.			-1.15		0.527	0.645	0.586
UKESM1-0-LL	[-]	118.	5.81	10.7	112.	0.0570		-1.01		0.557	0.714	0.636

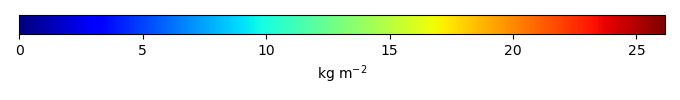

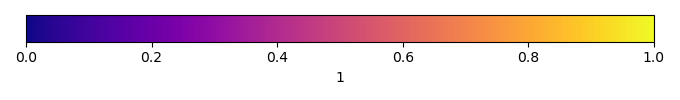

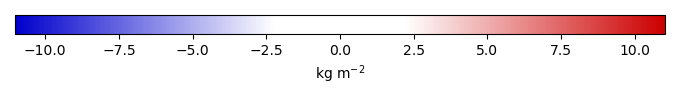

Equatorial Africa Equatorial Asia Global - Land High Latitude South America - Amazon Temperate Latitudes Temporally integrated period mean Temporally integrated period mean bias Temporally integrated period mean bias score

  Title:

Global Tropical Forest Biomass

  Institution:

NASA-JPL (NASA Jet Propulsion Laboratory, California Institute of Technology, Pasadena, California 91109, USA)

  Source:

4079 in situ inventory plots, satellite light detection and ranging (LiDAR) samples of forest structure, and optical and microwave imagery (1-km resolution) to extrapolate estimates

  History:

2015-01-08-T06:37:41Z Converted from 1 km x 1 km to 0.5 degree x 0.5 degree by Mingquan Mu (mmu@uci.edu) on Fri Jan 9 10:37:41 PST 2015

  References:

Saatchi, S. S., N. L. Harris, S. Brown, M. Lefsky, E. T. A. Mitchard, W. Salas, B. R. Zutta, W. Buermann, S. L. Lewis, S. Hagen, S. Petrova, L. White, M. Silman, and A. Morel (2011), Benchmark map of forest carbon stocks in tropical regions across three continents, Proc. Nat. Acad. Sci., 108(24):9899-9904, doi:10.1073/pnas.1019576108.

  Conventions:

CF-1.6

  Institute_id:

NASA-JPL

  Creation_date:

2015-01-08-T06:37:41Z

  Product:

observations

  Data_structure:

grid

  Realm:

land

  Contact:

Prof. James T. Randerson (jranders@uci.edu) or Dr. Mingquan Mu (mmu@uci.edu)
