Equatorial Africa Equatorial Asia Global - Land High Latitude South America - Amazon Temperate Latitudes

	Download Data	Period Mean (original grids) [Watt m-2]	Model Period Mean (intersection) [Watt m-2]	Benchmark Period Mean (intersection) [Watt m-2]	Model Period Mean (complement) [Watt m-2]	Benchmark Period Mean (complement) [Watt m-2]		Bias [Watt m-2]	RMSE [Watt m-2]	Phase Shift [months]		Bias Score [1]	RMSE Score [1]	Seasonal Cycle Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	234.
ACCESS-ESM1-5	[-]	250.	250.	234.				6.89	32.1	1.57		0.395	0.475	0.772	0.963	0.616
BCC-CSM2-MR	[-]	230.	230.	234.				-1.48	22.9	1.52		0.589	0.508	0.781	0.998	0.677
BGCLND	[-]	223.	223.	222.		249.		0.527	5.63	0.346		0.873	0.838	0.959	0.995	0.901
BGCLNDATM_progCO2	[-]	219.	219.	222.		249.		-3.03	23.5	1.13		0.542	0.548	0.845	0.779	0.652
CanESM5	[-]	234.	233.	234.				-0.344	26.1	1.49		0.570	0.454	0.786	0.986	0.650
CNRM-ESM2-1	[-]	226.	227.	234.				-5.99	26.8	1.59		0.571	0.457	0.757	0.983	0.645
EC-Earth3-CC	[-]	228.	228.	234.				-6.33	27.6	1.51		0.535	0.438	0.794	0.984	0.638
MeanCMIP6	[-]	227.	228.	234.				-21.0	33.2	1.17		0.458	0.599	0.832	0.994	0.696
MIROC-ES2L	[-]	221.	220.	234.				-13.2	29.7	1.87		0.501	0.471	0.707	0.907	0.611
MPI-ESM1-2-LR	[-]	240.	242.	234.				7.76	26.8	1.35		0.506	0.495	0.796	0.933	0.645
MRI-ESM2-0	[-]	246.	246.	234.				6.64	30.5	2.00		0.454	0.451	0.681	0.887	0.585
NorESM2-LM	[-]	216.	219.	234.				-9.92	24.1	1.19		0.569	0.481	0.827	0.981	0.668
UKESM1-0-LL	[-]	245.	245.	234.				8.46	26.3	1.28		0.484	0.492	0.818	0.848	0.627

	Download Data	Period Mean (original grids) [Watt m-2]	Model Period Mean (intersection) [Watt m-2]	Benchmark Period Mean (intersection) [Watt m-2]	Model Period Mean (complement) [Watt m-2]	Benchmark Period Mean (complement) [Watt m-2]		Bias [Watt m-2]	RMSE [Watt m-2]	Phase Shift [months]		Bias Score [1]	RMSE Score [1]	Seasonal Cycle Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	223.
ACCESS-ESM1-5	[-]	227.	227.	223.				11.8	23.1	1.58		0.586	0.577	0.774	0.703	0.643
BCC-CSM2-MR	[-]	214.	214.	223.				-0.558	19.4	1.48		0.688	0.593	0.784	0.837	0.699
BGCLND	[-]	214.	214.	212.		229.		2.90	7.77	0.646		0.783	0.821	0.909	0.984	0.864
BGCLNDATM_progCO2	[-]	212.	212.	212.		229.		0.888	19.3	1.53		0.579	0.591	0.772	0.948	0.696
CanESM5	[-]	200.	199.	223.				-6.09	22.1	1.21		0.613	0.582	0.841	0.977	0.719
CNRM-ESM2-1	[-]	199.	199.	223.				-5.66	24.2	1.62		0.600	0.550	0.754	0.953	0.681
EC-Earth3-CC	[-]	216.	215.	223.				-7.74	20.0	1.35		0.610	0.616	0.821	0.597	0.652
MeanCMIP6	[-]	199.	199.	223.				-32.2	37.2	1.23		0.362	0.682	0.828	0.991	0.709
MIROC-ES2L	[-]	198.	197.	223.				-19.2	28.0	1.55		0.497	0.559	0.754	0.852	0.644
MPI-ESM1-2-LR	[-]	219.	220.	223.				14.3	27.6	1.78		0.573	0.504	0.749	0.987	0.663
MRI-ESM2-0	[-]	209.	209.	223.				-2.42	20.6	1.17		0.652	0.567	0.852	0.999	0.727
NorESM2-LM	[-]	206.	206.	223.				-8.82	18.7	1.49		0.669	0.618	0.779	0.807	0.698
UKESM1-0-LL	[-]	218.	218.	223.				1.65	18.9	1.45		0.645	0.631	0.805	0.881	0.719

	Download Data	Period Mean (original grids) [Watt m-2]	Model Period Mean (intersection) [Watt m-2]	Benchmark Period Mean (intersection) [Watt m-2]	Model Period Mean (complement) [Watt m-2]	Benchmark Period Mean (complement) [Watt m-2]		Bias [Watt m-2]	RMSE [Watt m-2]	Phase Shift [months]		Bias Score [1]	RMSE Score [1]	Seasonal Cycle Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	187.
ACCESS-ESM1-5	[-]	197.	197.	187.				9.70	27.3	0.629		0.677	0.705	0.935	0.947	0.794
BCC-CSM2-MR	[-]	187.	187.	187.				0.448	24.1	0.666		0.722	0.709	0.929	0.939	0.802
BGCLND	[-]	182.	182.	186.		193.		-3.84	5.17	0.195		0.907	0.897	0.980	0.985	0.933
BGCLNDATM_progCO2	[-]	185.	185.	186.		193.		-1.61	23.4	0.616		0.738	0.714	0.939	0.945	0.810
CanESM5	[-]	196.	196.	187.				8.06	24.7	0.700		0.716	0.705	0.925	0.966	0.803
CNRM-ESM2-1	[-]	194.	194.	187.				7.34	22.4	0.623		0.758	0.724	0.935	0.985	0.825
EC-Earth3-CC	[-]	193.	193.	187.				6.67	22.2	0.681		0.756	0.728	0.933	0.975	0.824
MeanCMIP6	[-]	190.	190.	187.				1.80	18.9	0.507		0.755	0.773	0.949	0.970	0.844
MIROC-ES2L	[-]	187.	187.	187.				-0.616	19.7	0.640		0.771	0.724	0.927	0.980	0.825
MPI-ESM1-2-LR	[-]	190.	190.	187.				3.94	25.5	0.633		0.712	0.707	0.929	0.952	0.801
MRI-ESM2-0	[-]	199.	199.	187.				11.1	24.3	0.647		0.707	0.711	0.929	0.974	0.807
NorESM2-LM	[-]	191.	191.	187.				2.08	23.9	0.632		0.732	0.710	0.937	0.959	0.810
UKESM1-0-LL	[-]	197.	197.	187.				10.2	23.8	0.676		0.705	0.734	0.929	0.960	0.812

	Download Data	Period Mean (original grids) [Watt m-2]	Model Period Mean (intersection) [Watt m-2]	Benchmark Period Mean (intersection) [Watt m-2]	Model Period Mean (complement) [Watt m-2]	Benchmark Period Mean (complement) [Watt m-2]		Bias [Watt m-2]	RMSE [Watt m-2]	Phase Shift [months]		Bias Score [1]	RMSE Score [1]	Seasonal Cycle Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	118.
ACCESS-ESM1-5	[-]	113.	115.	118.				-9.16	18.6	0.405		0.873	0.796	0.972	0.918	0.871
BCC-CSM2-MR	[-]	100.	101.	118.				-25.0	29.5	0.494		0.754	0.757	0.964	0.950	0.836
BGCLND	[-]	116.	116.	119.		116.		-3.74	3.95	0.0609		0.946	0.933	0.996	0.980	0.957
BGCLNDATM_progCO2	[-]	97.8	97.8	119.		116.		-21.4	29.0	0.608		0.777	0.771	0.956	0.879	0.831
CanESM5	[-]	121.	121.	118.				-6.49	17.4	0.330		0.867	0.811	0.977	0.971	0.887
CNRM-ESM2-1	[-]	128.	129.	118.				3.60	20.8	0.213		0.847	0.801	0.985	0.957	0.878
EC-Earth3-CC	[-]	115.	115.	118.				-2.94	20.5	0.504		0.885	0.783	0.964	0.937	0.871
MeanCMIP6	[-]	113.	113.	118.				-18.8	22.1	0.205		0.803	0.816	0.986	0.972	0.879
MIROC-ES2L	[-]	116.	117.	118.				-7.37	15.3	0.240		0.880	0.830	0.983	0.908	0.886
MPI-ESM1-2-LR	[-]	103.	104.	118.				-19.5	25.1	0.300		0.792	0.782	0.979	0.956	0.858
MRI-ESM2-0	[-]	123.	124.	118.				-3.46	16.1	0.181		0.887	0.817	0.988	0.964	0.895
NorESM2-LM	[-]	109.	108.	118.				-20.4	26.4	0.494		0.791	0.783	0.966	0.968	0.858
UKESM1-0-LL	[-]	119.	119.	118.				-7.00	17.6	0.389		0.887	0.806	0.973	0.938	0.882

	Download Data	Period Mean (original grids) [Watt m-2]	Model Period Mean (intersection) [Watt m-2]	Benchmark Period Mean (intersection) [Watt m-2]	Model Period Mean (complement) [Watt m-2]	Benchmark Period Mean (complement) [Watt m-2]		Bias [Watt m-2]	RMSE [Watt m-2]	Phase Shift [months]		Bias Score [1]	RMSE Score [1]	Seasonal Cycle Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	202.
ACCESS-ESM1-5	[-]	239.	239.	202.				37.5	43.3	1.47		0.210	0.517	0.793	0.877	0.583
BCC-CSM2-MR	[-]	244.	244.	202.				41.2	46.4	2.30		0.192	0.460	0.637	0.992	0.548
BGCLND	[-]	202.	202.	201.		235.		0.990	5.24	0.538		0.864	0.847	0.927	0.997	0.897
BGCLNDATM_progCO2	[-]	208.	208.	201.		235.		7.15	22.9	1.61		0.565	0.519	0.769	0.908	0.656
CanESM5	[-]	237.	238.	202.				35.3	44.9	2.05		0.221	0.394	0.703	0.883	0.519
CNRM-ESM2-1	[-]	214.	214.	202.				13.4	26.8	1.49		0.554	0.430	0.777	0.979	0.634
EC-Earth3-CC	[-]	221.	221.	202.				18.6	25.4	2.02		0.440	0.498	0.693	0.998	0.626
MeanCMIP6	[-]	227.	227.	202.				23.9	29.9	1.53		0.302	0.585	0.774	0.965	0.642
MIROC-ES2L	[-]	209.	208.	202.				6.61	21.0	1.56		0.572	0.513	0.778	0.956	0.666
MPI-ESM1-2-LR	[-]	221.	221.	202.				21.8	31.9	2.10		0.386	0.453	0.671	0.923	0.577
MRI-ESM2-0	[-]	228.	228.	202.				25.9	33.1	1.39		0.318	0.460	0.805	0.994	0.607
NorESM2-LM	[-]	214.	214.	202.				12.4	23.9	1.36		0.505	0.489	0.811	0.964	0.652
UKESM1-0-LL	[-]	234.	234.	202.				32.5	37.3	2.29		0.246	0.475	0.637	0.946	0.556

	Download Data	Period Mean (original grids) [Watt m-2]	Model Period Mean (intersection) [Watt m-2]	Benchmark Period Mean (intersection) [Watt m-2]	Model Period Mean (complement) [Watt m-2]	Benchmark Period Mean (complement) [Watt m-2]		Bias [Watt m-2]	RMSE [Watt m-2]	Phase Shift [months]		Bias Score [1]	RMSE Score [1]	Seasonal Cycle Score [1]	Spatial Distribution Score [1]	Overall Score [1]
Benchmark	[-]	142.
ACCESS-ESM1-5	[-]	151.	152.	142.				3.05	17.7	0.447		0.879	0.829	0.966	0.967	0.894
BCC-CSM2-MR	[-]	139.	139.	142.				-11.5	23.5	0.573		0.821	0.790	0.954	0.925	0.856
BGCLND	[-]	147.	147.	146.		137.		0.436	3.87	0.122		0.972	0.961	0.991	1.00	0.977
BGCLNDATM_progCO2	[-]	140.	140.	146.		137.		-5.96	24.2	0.532		0.831	0.788	0.962	0.877	0.849
CanESM5	[-]	152.	155.	142.				2.65	18.1	0.545		0.866	0.830	0.955	0.975	0.891
CNRM-ESM2-1	[-]	161.	161.	142.				13.7	19.2	0.401		0.820	0.844	0.969	0.995	0.894
EC-Earth3-CC	[-]	150.	150.	142.				7.75	17.6	0.610		0.875	0.832	0.955	0.988	0.896
MeanCMIP6	[-]	149.	149.	142.				-10.4	22.1	0.372		0.789	0.844	0.970	0.945	0.879
MIROC-ES2L	[-]	148.	151.	142.				0.335	15.5	0.427		0.882	0.851	0.964	0.989	0.907
MPI-ESM1-2-LR	[-]	142.	144.	142.				-7.69	22.5	0.498		0.809	0.810	0.956	0.922	0.861
MRI-ESM2-0	[-]	158.	158.	142.				6.04	15.9	0.443		0.886	0.846	0.965	0.987	0.906
NorESM2-LM	[-]	155.	151.	142.				-2.02	20.8	0.485		0.819	0.830	0.963	0.894	0.867
UKESM1-0-LL	[-]	153.	154.	142.				2.09	16.9	0.491		0.876	0.836	0.965	0.969	0.896

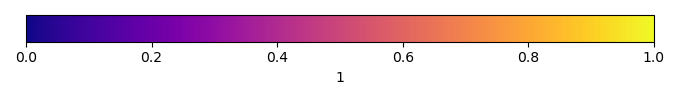

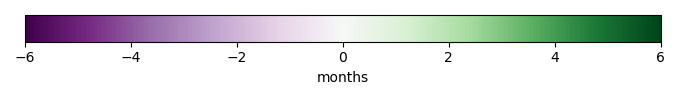

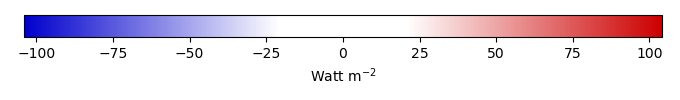

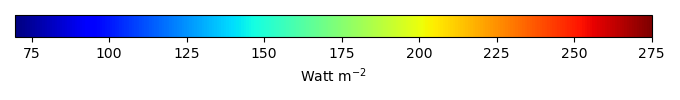

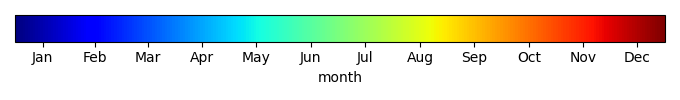

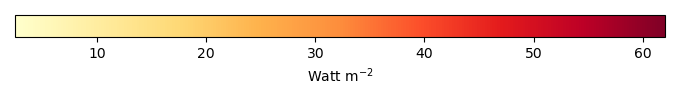

Equatorial Africa Equatorial Asia Global - Land High Latitude South America - Amazon Temperate Latitudes Temporally integrated period mean Temporally integrated period mean max month Temporally integrated mean phase shift Temporally integrated mean phase shift score Temporally integrated period mean bias Temporally integrated period mean bias score Temporally integrated period mean rmse Temporally integrated period mean rmse score Spatially integrated regional mean cycle Spatially integrated regional mean detrended cycle Spatially integrated regional mean

  Title:

derived GEWEX SRB Radiation

  Source_file:

This product is generated from monthly 1 degree GEWEX SRB Radiation observations

  Conventions:

Please contact Prof. James Randerson (Email: jranders@uci.edu) or Dr. Mingquan Mu (mmu@uci.edu) for any question

  Creation_date:

Mon Jun 30 23:16:59 PDT 2014

  Approach:

I simply read surface all-sky downward shortwave (sw_sfc_dn). Meanwhile, the data were also binned from original 1.0x1.0 resolution to final 0.5x0.5 resolution.

  Temporal resolution:

monthly

  General information:

This product was derived from NASA GEWEX SRB radiation dataset.

  Spatial resolution:

0.5x0.5 degree

  Derived data code:

http://redwood.ess.uci.edu/mingquan/www/ILAMB/Download/CODES/CODES/subroutines/convert/convert-radiation-gewex.srb.ncl
